XN4-E
The RMS XN4-E strain gauge amplifier is an upgrade of our well-known XN4 strain gauge, high resolution and high speed, with offset and gain adjusted by micro-controller.
The RMS XN4-E strain gauge amplifier is an upgrade of our well-known XN4 strain gauge, high resolution and high speed, with offset and gain adjusted by micro-controller.
Product description

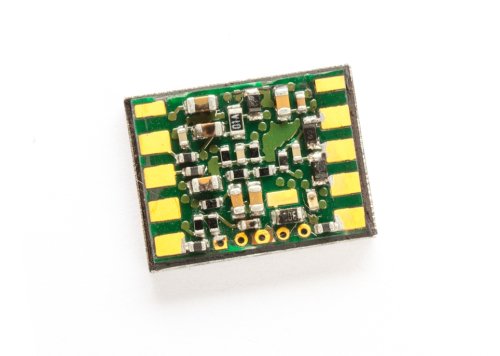

The RMS XN4-E strain gauge amplifier is an upgrade of our well-known XN4 strain gauge amplifier. While keeping the same advantages/functionalities, the RMS XN4-E strain gauge amplifier benefits from an increased power supply, ranging from 4.5 to 30V, which makes it a perfect fit for applications in Aeronautics. The XN4-E strain gauge amplifier’s small size allows it to be bonded close to the gauges, which will reduce noise on the signal. It is also fully EMI-RFI protected. Key features of the XN4-E strain gauge amplifier are:
- Supply voltage range from 4.5 to 30V
- Gain and Offset are programmable via Vprog or Tx/Rx even if the XN4 is not linked to Strain Gauges
- Offset is programmable in mV and Gain in 1/10 (Gain from 70 to 1250)
- Offset value from 0 to 5V
- Output signal can increase or decrease under load
- No need to apply a force to program a Gain
- Temperature compensation is now in time basis, from 2 to 12 hours
- Compensation table values can be edited
- Working temperature from -20 to +125°C
- Noise reduction
Most of the strain gauge amplifier parameters such as gain and offset are programmable by the user via a USB connection and laptop. For more technical information please download the specification sheet.
