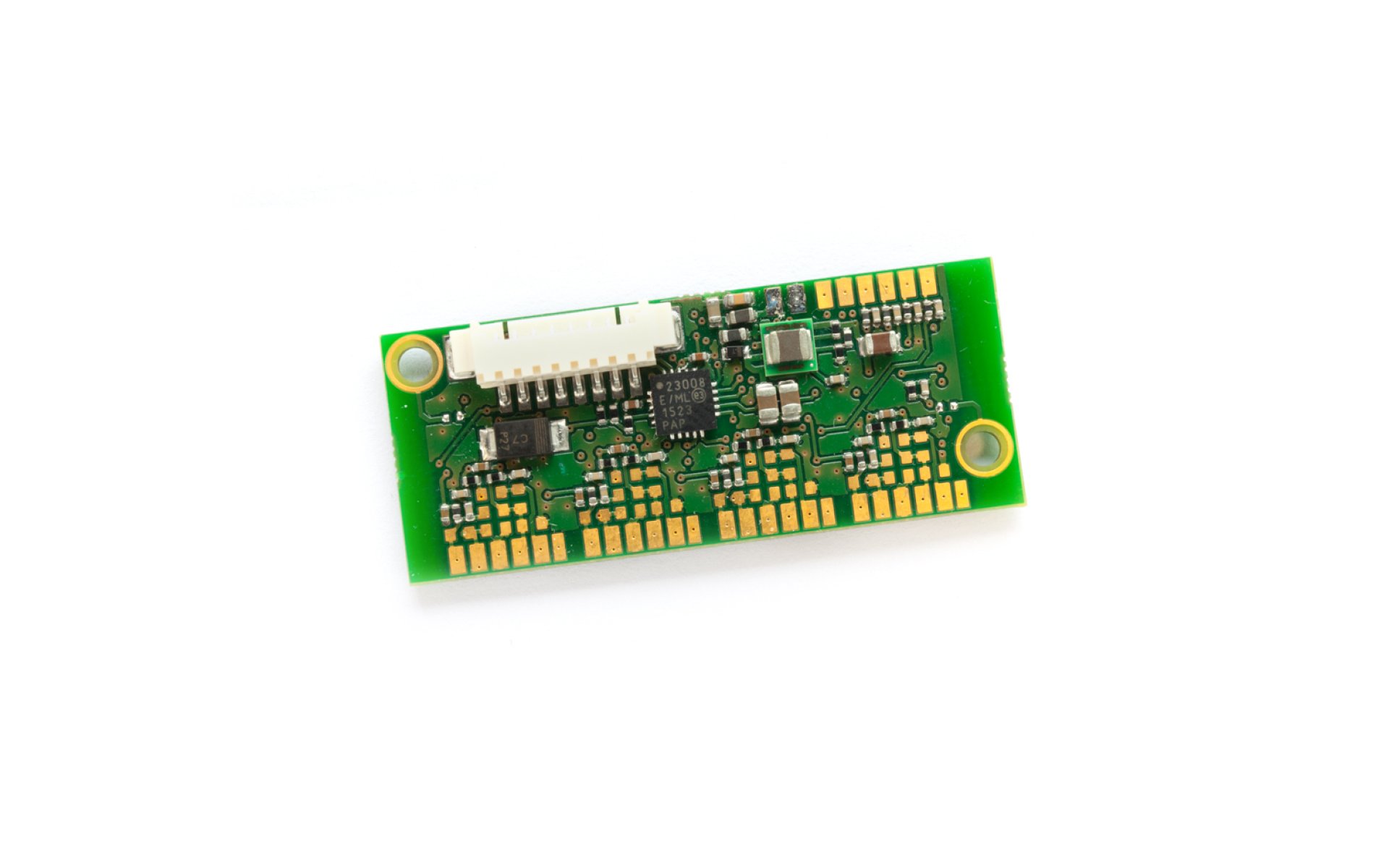

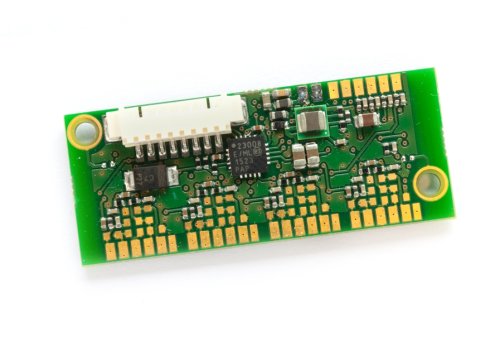

XN5

The XN5 strain gauge amplifier is a 4 channel output version of our popular XN4 strain gauge amplifier. With the XN5 strain gauge amplifier, it’s possible to use a single compact amplifier with 4 separate inputs.

Download datasheet

The XN5 strain gauge amplifier is a 4 channel output version of our popular XN4 strain gauge amplifier. With the XN5 strain gauge amplifier, it’s possible to use a single compact amplifier with 4 separate inputs.

Download datasheet

Product description

The XN5 strain gauge amplifier is a 4 channel output version of our popular XN4 strain gauge amplifier. With the XN5 strain gauge amplifier, it’s possible to use a single compact amplifier with 4 separate inputs. Gain and Offset are programmable even if the XN5 strain gauge amplifier is not linked to Strain Gauges. Offset is programmable in mV and Gain in 1/10 (Gain from 70 to 1250).

  • Offset value from 0 to 5 V
  • Output signal can increase or decrease under load
  • No need to apply a force to program a Gain
  • Temperature compensation is now in time basis, from 2 to 12 hours
  • Compensation table values can be edited
  • Working temperature is from -20 to +125°C
  • Noise reduction
  • Most of the amplifier parameters (gain and offset) are programmable by the user via a USB Connect and a laptop.

For more technical information, please download the specification sheet.
